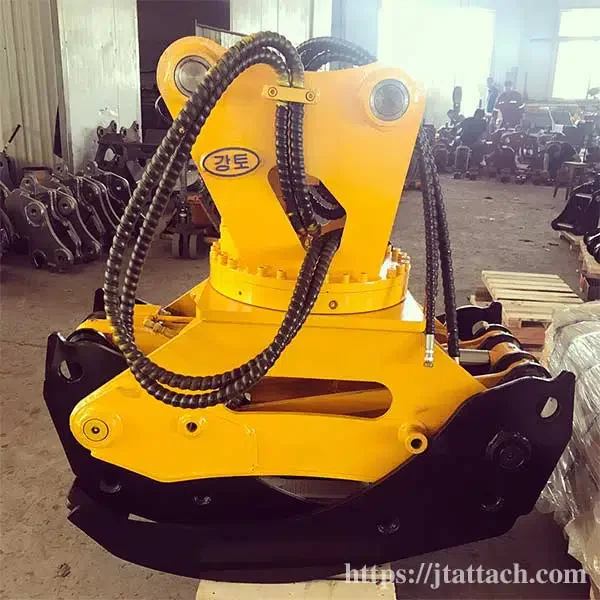

JIANGTU JT-02 Rotating Grapple — 4–6 Tonne Excavators
JT-02 is the 4–6 tonne rotating-grapple configuration with a 1, 322 mm opening, 407 mm jaw width and 350–370 kg attachment weight. The 360° rotator orients material independently of the gripping movement. Rotation and jaw-cylinder connections have separate pressure requirements.
- Model / Part No.
- JIANGTU JT02
- Machine / configuration
- 4–6 tonne excavators

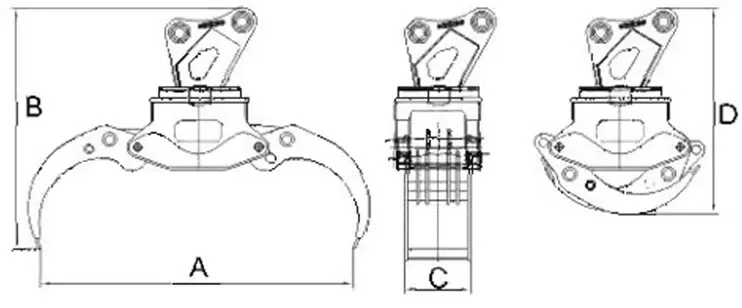

- Jaw opening A
- 1322 mm
- Jaw width C
- 407 mm
- Rotation motor pressure
- 110–120 kg/cm²
JIANGTU JT02 Specifications
| Model / part number | JIANGTU JT02 |
|---|---|
| Excavator class | 4–6 t |
| Rotation | 360° |
| Jaw opening A | 1322 mm |
| Jaw width C | 407 mm |
| Weight | 350–370 kg |
| Rotation motor flow | 30–55 L/min |
| Rotation motor pressure | 110–120 kg/cm² |
| Jaw-cylinder flow | 30–55 L/min |
| Jaw-cylinder pressure | 160–200 kg/cm² |
Mini-excavator handling with independent orientation
For sorting branches, short logs or irregular loose material, the rotator aligns the load with the receiving position. The jaw opening measures entry space; the 407 mm width describes the gripping section. The excavator’s lift chart and working radius define the loaded combination after the 350–370 kg grapple and mounting are included.
Do not combine motor pressure with cylinder pressure
The JT-02 table gives 110–120 kg/cm² for the rotation motor and 160–200 kg/cm² for the jaw cylinder. Both flow entries are 30–55 L/min. The controls and hydraulic drawing need to command the two functions while supplying their respective pressure circuits.
| Function | Flow | Pressure |
|---|---|---|
| Rotate | 30–55 L/min | 110–120 kg/cm² |
| Grip | 30–55 L/min | 160–200 kg/cm² |
Compare adjacent mini-grapple sizes
Choose the carrier and hydraulic circuits before comparing the opening. The adjacent models are distinct assemblies, with different mass and gripping envelope.
| Model | Carrier | Opening | Width | Weight |
|---|---|---|---|---|
| JT01 | 3–4 t | 1, 222 mm | 330 mm | 240–260 kg |
| JT-02 | 4–6 t | 1, 322 mm | 407 mm | 350–370 kg |
| JT-04 | 6–9 t | 1, 525 mm | 470 mm | 420–450 kg |
Buy the rotator and jaw service groups separately
The mounting, rotation motor/rotator, jaw-cylinder assembly and pivot joints are separate order groups. Add cylinder seals, pivot pins/bushes and the hose fittings with their positions. Keep the rotator and cylinder markings with the first order for later repair-part identification.
Compare excavator log grapples & timber grabs
Purchase Options & Service Parts
Purchase options
- JT-02 rotating body and jaw assembly
- Machine-specific bracket or quick-hitch pickup
- Rotation and gripping control/hose package
- Cylinder-seal and pivot service kit
- Rotator service components by assembly
Service & replacement parts
- Cylinder seal set
- Pivot pins and bushes
- Rotator/motor components
- Hoses and fittings
JIANGTU JT02 Buying Questions
What mini excavator size does JT-02 cover?
The configuration serves 4–6 tonne excavators, with a 1, 322 mm opening and 350–370 kg weight.
Does it use the same hydraulic pressure for gripping and rotation?
The manufacturer gives separate entries: 110–120 kg/cm² for the rotation motor and 160–200 kg/cm² for the jaw cylinder. Both functions list 30–55 L/min.
Is a wider opening also a heavier-load rating?
Opening is a geometric dimension. The carrier lift chart, attachment mass and working radius define the lifted combination.
Which model is the smaller 3–4 tonne option?
JT01 is the adjacent rotating configuration, with a 1, 222 mm opening, 330 mm width and 240–260 kg weight.
