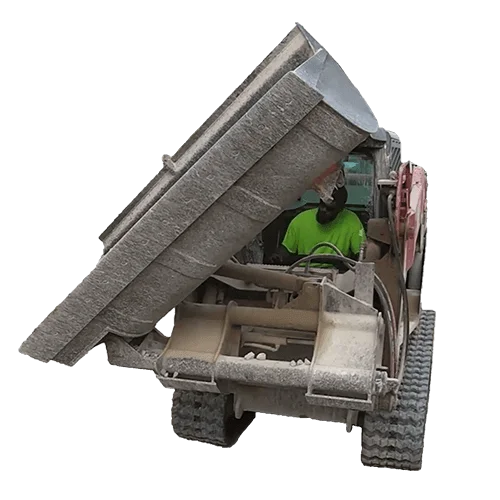

MAXX 5643D1 Skid-Steer Side Dump Bucket — 0.60 yd³
MAXX 5643D1 is a 0.60 yd³ skid-steer side dump bucket weighing 1, 250 lb /567 kg. The single hydraulic cylinder has a 3.5 inch bore, 2 inch rod and 18 inch stroke. Select a left- or right-discharge build for trench placement, confined lanes and aggregate handling.
- Model / Part No.
- MAXX 5643D1
- Machine / configuration
- Skid steer /compact track loader
- Capacity
- 0.60 yd³ / approximately 0.459 m³
MAXX 5643D1 Specifications
| Model / part number | MAXX 5643D1 |
|---|---|
| Capacity | 0.60 yd³ / approximately 0.459 m³ |
| Empty weight | 1250 lb /567 kg |
| Cylinder bore | 3.5 in |
| Cylinder rod | 2 in |
| Cylinder stroke | 18 in |
| Moldboard thickness | 1/4 in |
| Mount | Universal skid-steer mounting |
| Discharge configuration | Left or right |
Select the discharge side from the travel route
The bucket is built for left or right side discharge and can also dump forward. A loader travelling parallel to the receiving trench can place material laterally instead of turning square for every unload. Draw the approach lane and receiving side before selecting the build.
A 567 kg bucket before the material is added
The 0.60 yd³ volume is approximately 0.459 m³. At a specified density of 1.6 t/m³, a volume fill contains about 734 kg of material; adding the 567 kg bucket gives about 1, 301 kg before other mounting items. This is a load calculation for choosing the skid-steer combination, rather than a machine-rated lifting figure.
A protected cylinder and a defined wear package
The MAXX design uses a single protected cylinder with a load-holding valve, plus hydraulic and mechanical locking on the dump function. The model’s cylinder dimensions are 3.5 inch bore, 2 inch rod and 18 inch stroke. A rock rack and V-type edge are selectable equipment for a rock-handling order.
| Order line | Selection |
|---|---|
| Bucket | 5643D1, 0.60 yd³ |
| Discharge | Left or right |
| Mounting | Skid-steer attachment plate |
| Rock-handling equipment | Rock rack and V-type edge |
| Service | Cylinder seals, pivots, edges and hoses |
Compare wheel-loader side dump buckets
Purchase Options & Service Parts
Purchase options
- 0.60 yd³ body with skid-steer mount
- Left or right discharge build
- Single hydraulic cylinder and locking arrangement
- Optional rock rack/V-type edge
- Wear edges, cylinder seals, pivots and hose package
Service & replacement parts
- Cylinder seals
- Side pivots and bushes
- Cutting edge
- Hydraulic hoses and valve components by assembly
MAXX 5643D1 Buying Questions
Can the bucket still dump forward?
The side-dump design also permits conventional forward unloading. Side discharge is the additional function for placement beside the travel lane.
Does it have selectable left and right dumping in one bucket?
The manufacturer offers a left or right build. State the selected side in the purchase description.
What does the 0.60 yd³ capacity equal in metric units?
It is approximately 0.459 m³. Keep the original cubic-yard capacity and the converted volume together when comparing metric bucket offers.
Can this replace a 4 tonne-class wheel-loader bucket?
It is the skid-steer mounting and 0.60 yd³ configuration. The larger wheel-loader buckets have different linkage, rated-load classes and working envelopes.
