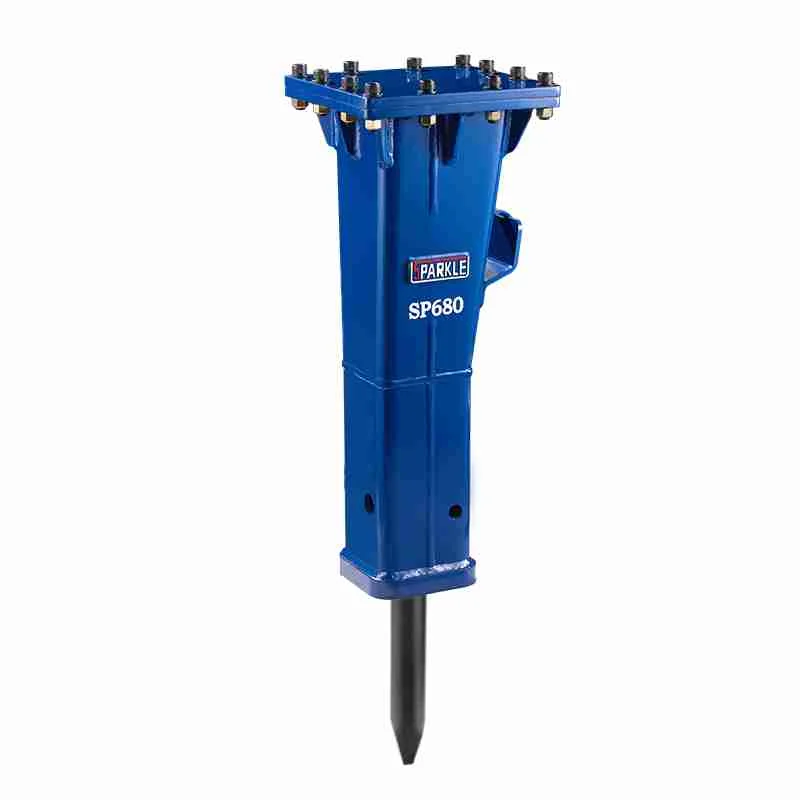

Sparkle SP680 Silent Hydraulic Breaker — 68 mm Tool
SP680 silent type covers 4–7 tonne excavators with a 361 kg operating weight and 68 mm tool. Its circuit uses 40–70 L/min at 108–137 bar, with a 500–900 blows/minute range. Choose it for the compact machine class between the SP530 and SP750 installations.
- Model / Part No.
- Sparkle SP680
- Machine / configuration
- 4–7 tonne excavators
- Tool diameter
- 68 mm
- Oil flow
- 40–70 L/min
- Breaker operating pressure
- 108–137 bar
Sparkle SP680 Specifications
| Model / part number | Sparkle SP680 |
|---|---|
| Body | SP680 silent type |
| Carrier weight | 4–7 t |
| Operating weight | 361 kg |
| Tool diameter | 68 mm |
| Oil flow | 40–70 L/min |
| Breaker operating pressure | 108–137 bar |
| Impact rate | 500–900 bpm |
| Hose bore | 12.7 mm / 1/2 in |
| Impact energy | 690 J |
A 5 tonne excavator needs its own hammer comparison
SP680’s 4–7 tonne carrier range covers the 5 tonne purchasing task. Compare it with SP530 at 2.5–4.5 tonnes and SP750 at 6–9 tonnes using the hydraulic windows and mounted weight. A small difference in carrier tonnage is not a reason to ignore the different hammer bodies.
| Model/body | Carrier | Weight | Tool | Flow |
|---|---|---|---|---|
| SP530 silent | 2.5–4.5 t | 155 kg | 53 mm | 25–50 L/min |
| SP680 silent | 4–7 t | 361 kg | 68 mm | 40–70 L/min |
| SP750 top | 6–9 t | 409 kg | 75 mm | 50–90 L/min |
Keep operating pressure and machine setting separate
SP680’s breaker working pressure is 108–137 bar. The machine setting listed for the configuration is 160 bar. The two fields describe different points in the hydraulic setup, and the circuit drawing keeps the feed, return and hose-end connections alongside them.
Order wear parts for the silent-body configuration
The package lists a bracket, two mounting pins, two hoses, two chisels and maintenance/charging equipment. Replacement tools need the 68 mm shank and retaining details; a seal order follows the silent-body assembly. Add spare tools and service quantities as separate purchase lines.
Compare excavator hydraulic breakers
| Model | Carrier | Weight | Tool | Oil flow | Operating pressure |
|---|---|---|---|---|---|
| Sparkle SP530 | 2.5–4.5 t | 155 kg | 53 mm | 25–50 L/min | 88–117 bar |
| Sparkle SP680 | 4–7 t | 361 kg | 68 mm | 40–70 L/min | 108–137 bar |
| SP750 | 6–9 t | 409 kg | 75 mm | 50–90 L/min | 118–147 bar |
| SB81 | 19–26 t | 1898 kg | 140 mm | 130–170 L/min | 160–180 bar |
Purchase Options & Service Parts
Purchase options
- SP680 silent body with bracket and two pins
- Two 68 mm chisels
- Two 1/2 inch hoses with selected ends
- Tool kit and charging equipment
- Extra tool, bush and seal package
Service & replacement parts
- 68 mm tools
- Tool bushes and retaining pins
- Silent-body seal kit
- Hydraulic hoses and mounting parts
Sparkle SP680 Buying Questions
Is this a hydraulic breaker for a 5 tonne excavator?
SP680 silent type is the 4–7 tonne configuration. It weighs 361 kg and uses 40–70 L/min, with a 68 mm tool.
Why not use the top-type weight on this page?
Top and silent bodies are different assemblies. This page uses the 361 kg silent-body specification; the separately listed top version is 343 kg.
What does the 690 J figure describe?
It is the manufacturer’s impact-energy specification for this body. Flow, pressure, tool size and blow frequency remain separate fields in the hammer comparison.
Does a 1/2 inch hose specify the connector thread?
It specifies the bore. The machine and hammer end connections need their thread and sealing-face details on the hose order.
Product & Purchase Guides
Related Products
Excavator Hydraulic Breakers
JISAN SB81 Hydraulic Breaker — JSB1900S Side Type
140 mm tool, 130–170 L/min oil flow and 1, 898 kg working weight in the JSB1900S side-type configuration.
140 mm tool · 130–170 L/min
Excavator Hydraulic Breakers

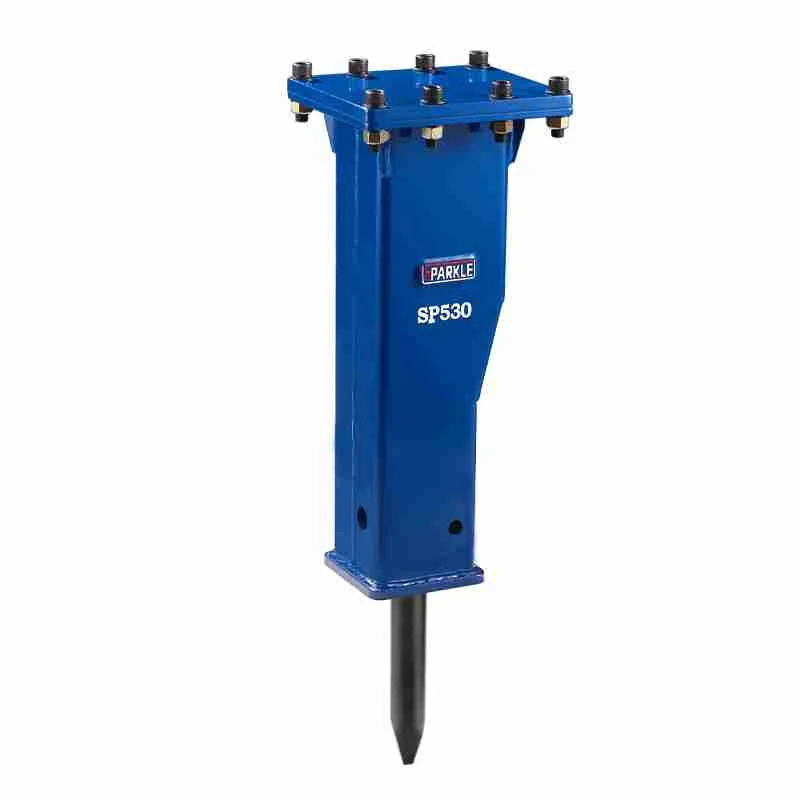

Sparkle SP530 Silent Hydraulic Breaker — 53 mm Tool
