Skid Steer Tires & Wheels

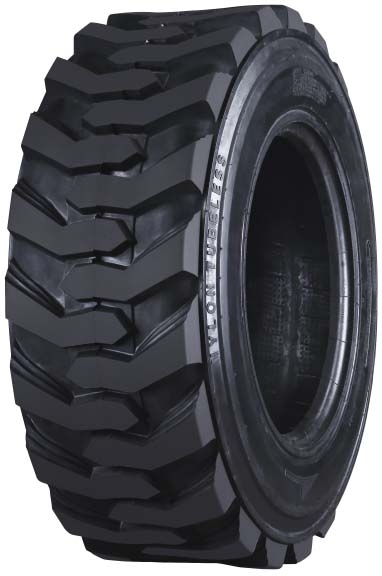

Forerunner SKS-1 10–16.5 10PR Skid Steer Tyre
10–16.5 10PR SKS-1 tyre, with 779 mm diameter, 261 mm section width and 8.25 in recommended rim.
Forerunner SKS-1 10–16.5 10PR
PRODUCT CATEGORY
Skid Steer Tires & Wheels
Choose the tyre size, ply/load configuration, standard rim or complete wheel; compare Forerunner SKS-1 tyres and named airless hub assemblies.
2 products
Skid Steer Tires & Wheels

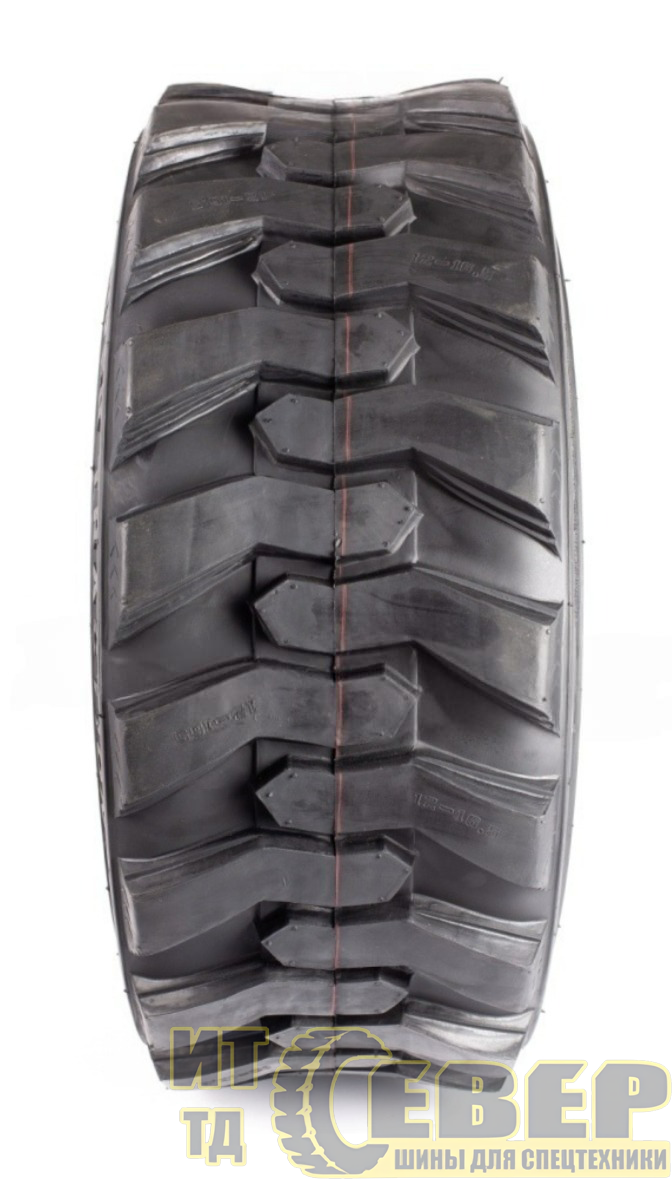

Forerunner SKS-1 12–16.5 12PR Skid Steer Tyre
12–16.5 12PR SKS-1 tyre, with 830 mm diameter, 312 mm section width and 9.75 in recommended rim.
Forerunner SKS-1 12–16.5 12PR
Models and component numbers
No matching products.
Send the part number or describe the equipment you need.
Send a sourcing requestCompare the two Forerunner SKS-1 tyre sizes
The 10–16.5 10PR and 12–16.5 12PR entries have different casing geometry and standard rims. Use the actual size and ply rating on each line of a four-corner or fleet order.
| Product | Diameter | Section width | Standard rim | Load / pressure pair |
|---|---|---|---|---|
| Forerunner SKS-1 10–16.5 10PR | 779 mm | 261 mm | 8.25 in | 2, 135 kg at 520 kPa |
| Forerunner SKS-1 12–16.5 12PR | 830 mm | 312 mm | 9.75 in | 2, 865 kg at 550 kPa |
Tyre-only, complete wheel and airless assembly are different purchases
A tyre-only line retains the wheel. A tyre-and-rim line adds the specified rim, hub fixing and offset. An airless Michelin X TWEEL SSL 2 includes the selected tyre/hub assembly and uses its complete MSPN.
| Purchase | Retained machine part | Selection fields |
|---|---|---|
| Pneumatic tyre | Existing rim/hub | Size, ply/load, standard rim |
| Tyre and complete wheel | Machine wheel studs/hub | Bolt count/circle, centre bore, offset |
| Airless TWEEL SSL 2 | Machine hub | Complete MSPN and hub configuration |
A TWEEL choice has a complete hub identity
The Michelin12N16.5 MSPN07013 entry has a 4, 400 lb maximum-load specification and 211 lb unit weight. The fitment guide pairs selected318E and 320E assemblies with an eight-hole, 8-inch bolt circle; their original tyre classes and MSPNs differ.
| Machine | Original tyre class | Hub bolt pattern | TWEEL choices |
|---|---|---|---|
| 318E | 10×16.5 | 8 holes on8.00 in circle | 10N16.5 MSPN93405 / 69607 |
| 320E | 12×16.5 | 8 holes on8.00 in circle | 12N16.5 MSPN07013 / 45604 |
Quote the wheel fixing and the tyre quantity together
For a tyre-and-wheel purchase, add rim width, bolt-circle diameter, hole size, centre bore and offset to the tyre marking. Count tyres, valves and wheel hardware separately. Wheel spacers used for an over-tire track installation form another identified line.
