Skid Steer Augers

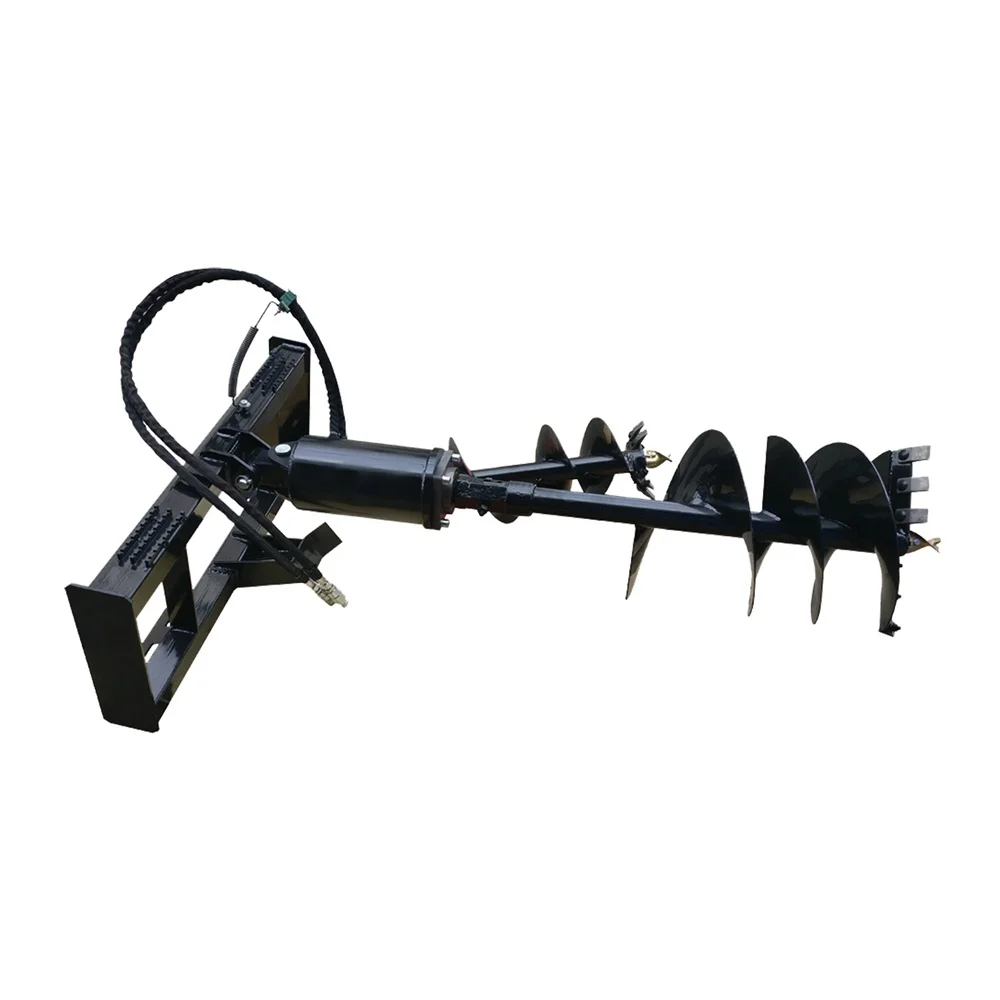

Wolverine ADB-13-1218R Skid-Steer Auger Drive & Two-Bit Package
Skid-steer mounted drive, 12- and 18-inch bits, 2.56-inch round output and 8–20 US gpm circuit.
2.56 in round
PRODUCT CATEGORY
Skid Steer Augers
Wolverine ADB-13-1218R skid-steer drilling package: pivoting mounting frame, 2.56-inch round output, 12- and 18-inch augers, and 8–20 US gpm circuit. Compare the drill diameter, 25-inch working depth, cutting tools and installed connections.
1 products
Models and component numbers
No matching products.
Send the part number or describe the equipment you need.
Send a sourcing requestDrive and drill are separate order assemblies
| Assembly | Identity |
|---|---|
| Drive | Motor/gearbox, flow/pressure and output shaft |
| Mount | Skid-steer plate, cradle and pivot |
| Drill | Hole diameter, working length and shaft connection |
| Wear set | Teeth, holders and pilot |
| Extension | Length and connection |
ADB-13-1218R skid-steer package
| Field | Specification |
|---|---|
| Manufacturer SKU | ADB-13-1218R |
| Package weight | 370 lb |
| Output shaft | 2.56 in round |
| Flow | 8–20 US gpm |
| Continuous pressure | 3000 psi maximum |
| Listed drills | 12 and 18 in diameter |
| Listed working depth | 25 in |
Round, hex and square outputs are distinct
The 2.56 inch round output defines the drill connection for this package. Others use hex or square outputs. A nominal hole diameter does not identify that connection; order the shaft size, locking pin and drill length with the bit.
Choose ground tools before the extension
Earth teeth, carbide wear teeth and rock tools are separate cutting systems. The extension adds reach; it does not increase the drive’s torque. In a fence-post job, put hole diameter, depth, soil profile and pilot/teeth selection beside the drive. Then order spares by that cutting assembly.
Buying questions
Does 12 inch diameter describe the output shaft?
No. It is the hole/drill diameter. The output is 2.56 inch round.
Does an extension increase drive power?
It adds reach; torque comes from the drive and hydraulic installation.
What should a wear set include?
Teeth, holders, pilot and fasteners matched to the selected drill.
