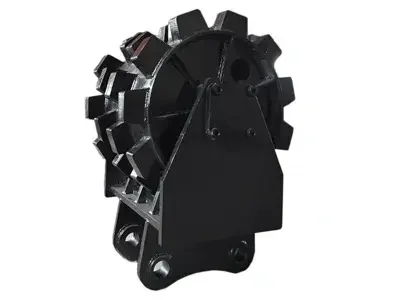

SC Equipment SC12 Mechanical Compaction Wheel
A 640 kg mechanical wheel for 10–15 tonne excavators, with 840 mm wheel diameter, 400 mm working width and 24 pads.
10–15 t
PRODUCT CATEGORY
Excavator Compaction Wheels
A mechanical compaction wheel rotates as the excavator pushes it along placed material. Its pads apply kneading and pressure without an attachment motor. Match wheel width, diameter, pad layout and pin mounting to the trench and carrier.
1 products
Models and component numbers
No matching products.
Send the part number or describe the equipment you need.
Send a sourcing requestMechanical wheel or vibrating plate
| Type | Action | Power |
|---|---|---|
| Mechanical wheel | Pads work through placed fill | Carrier downforce and travel; no attachment motor |
| Vibrating plate | Repeated vibration through a base plate | Hydraulic vibration motor |
| Vibrator y roller | Rolling drum with vibration | Excite r hydraulic circuit |
Compare SC Equipment wheel sizes
| Model | Carrier | Wheel diameter | Compaction width | Pads | Weight |
|---|---|---|---|---|---|
| SC08 | 5–8 t | 680 mm | 310 mm | 18 | 330 kg |
| SC12 | 10–15 t | 840 mm | 400 mm | 24 | 640 kg |
| SC20 | 18–29 t | 1030 mm | 560 mm | 36 | 1210 kg |
Compaction width is not the whole attachment width
SC12 has 400 mm compaction width and 595 mm overall width. Its 840 mm wheel diameter and 935 mm overall height are separate fields. The trench-clearance drawing uses the overall envelope, and the pass planning uses the pad-working width.
Order pads, bearings and mounting by assembly
Specify wheel/pad layout, pin diameters, centres and inside mounting width together. Bearings, seals, pads and mounting pins are repeat-order items. The backfill work plan defines lift/material and test requirements; the wheel purchase provides the chosen mechanical tool for the specified passes.
Buying questions
Does a mechanical wheel need auxiliary hydraulics?
It is a motor-free mechanical assembly driven through carrier movement.
What is the difference between 400 and 595 mm?
For SC12, 400 mm is compaction width;595 mm is overall attachment width.
What identifies replacement bearings?
Wheel/model identity, bearing/seal dimensions and the axle assembly identify them.
