Mini Excavator Flail Mowers

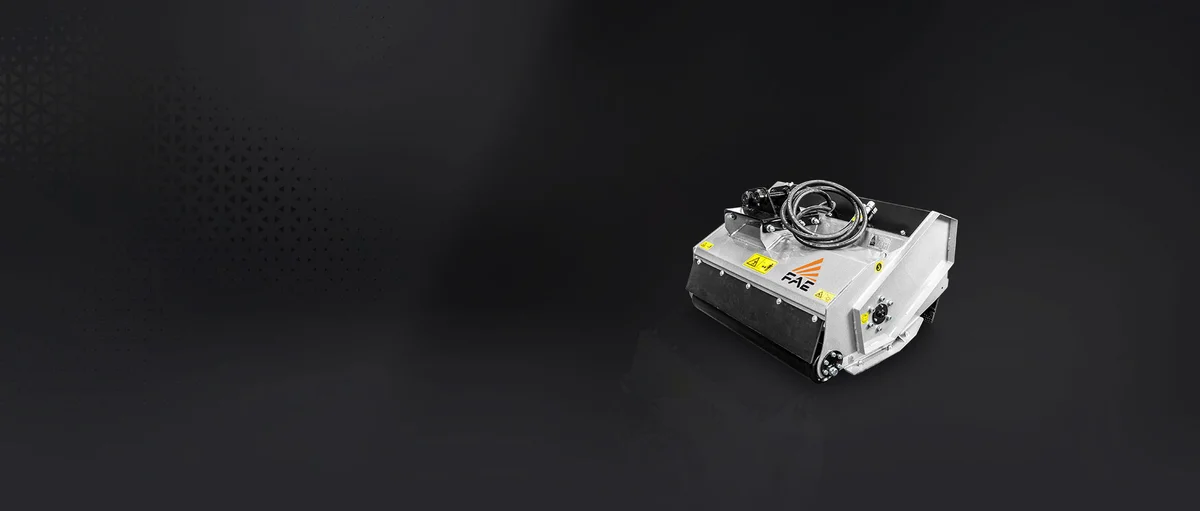

FAE PML/HY 70 Mini-Excavator Flail Head — 700 mm
A 195 kg head for 2–3.5 tonne excavators, with 700 mm working width and ten hammer/flail positions.
2–3.5 t
PRODUCT CATEGORY
Mini Excavator Flail Mowers
PML/HY hammer and Y-flail heads for mini excavators: compare 500, 700 and 900 mm rotors, 8 cc and 16 cc motors, mounting and replacement cutting tools. The 700 mm model serves 2–3.5 tonne machines.
1 products
Models and component numbers
No matching products.
Send the part number or describe the equipment you need.
Send a sourcing requestHammer and Y-flail tools are order choices
The FAE PML/HY rotor can use PML hammers or Y/2 flails. Tool population changes with working width. The rear roller, self-levelling mounting option and side skids control the head’s position against the cut area. This is different from a pair of long rotary blades beneath a deck.
Compare the PML/HY widths
| Model | Carrier | Width | Weight | Flow | Pressure | Tool count |
|---|---|---|---|---|---|---|
| PML/HY 50 | 1.5–3.5 t | 500 mm | 180 kg | 19–60 L/min | 150–210 bar | 8 |
| PML/HY 70 | 2–3.5 t | 700 mm | 195 kg | 19–60 L/min | 150–210 bar | 10 |
| PML/HY 90 | 2.5–3.5 t | 900 mm | 210 kg | 19–60 L/min | 150–210 bar | 14 |
Motor selection separates two flow windows
The 8 cc motor option operates at 19–40 L/min; the 16 cc option uses 38–60 L/min. Write that displacement and its control/anti-cavitation arrangement into the hydraulic package. The overall 19–60 L/min family range combines configurations, not a new operating window for a single fixed motor.
A ditch-bank work sequence uses reach as well as width
The excavator positions the head along the bank, works a defined cutting swath, and returns to adjacent passes. Ground-following hardware and the mounting profile determine the working angle. The bucket pin dimensions and hose route must permit that positioning without treating the mower as a hanging rotary brush cutter.
Wear tools are counted by the selected rotor
- PML/HY head and selected width
- PML hammer or Y/2 flail population
- 8 cc or 16 cc motor and valve arrangement
- Mounting bracket, pins and optional self-levelling plate
- Replacement tools, fasteners, belts and roller-service parts
Buying questions
Does a 700 mm flail head have the same tool count as 900 mm?
PML/HY 70 uses ten hammer/flail positions; PML/HY 90 uses fourteen. Keep the width and tool type on the spare-parts order.
Is the full 19–60 L/min range for one motor?
The range contains 8 cc and 16 cc motor configurations. Their respective windows are 19–40 and 38–60 L/min.
What defines the bucket-end connection?
Pin diameters, pin centres, inside mounting width and the bracket profile define the machine interface.
