Mini Excavator Flail Mowers
FAE PML/HY 70 Mini-Excavator Flail Head — 700 mm
A 195 kg head for 2–3.5 tonne excavators, with 700 mm working width and ten hammer/flail positions. Choose the 8 cc 19–40 L/min or 16 cc 38–60 L/min motor configuration.
- Model / Part No.
- FAE PML/HY 70
- Machine / configuration
- 2–3.5 tonne mini excavators
- Working width
- 700 mm
- Pressure
- 150–210 bar
- Rotor diameter
- 360 mm
FAE PML/HY 70 Specifications
| Model / part number | FAE PML/HY 70 |
|---|---|
| Carrier | 2–3.5 t |
| Working width | 700 mm |
| Weight | 195 kg |
| Pressure | 150–210 bar |
| Rotor diameter | 360 mm |
| Tool positions | 10 |
| Vegetation diameter | 40 mm |
| 8 cc motor flow | 19–40 L/min |
| 16 cc motor flow | 38–60 L/min |
Match the motor to the carrier circuit
The motor-displacement choice defines the useful flow window. The 8 cc version uses 19–40 L/min; the 16 cc option uses 38–60 L/min. The pressure field is 150–210 bar.
Count the replacement tools
The 700 mm rotor has ten positions. Write PML hammer or Y/2 flail on the replacement order and include the corresponding bolts and rotor identity.
Select the width, tool and motor as one head
| Group | Selection |
|---|---|
| Head | 700 mm rotor; 195 kg; 10 tool positions |
| Cutting tools | PML hammers or Y/2 flails |
| Motor | 8 cc at 19–40 L/min or 16 cc at 38–60 L/min |
| Ground-following | Rear roller, side skids and selected self-levelling mount |
| Service | Matched tools/bolts, belts, roller bearings and motor/valve items |

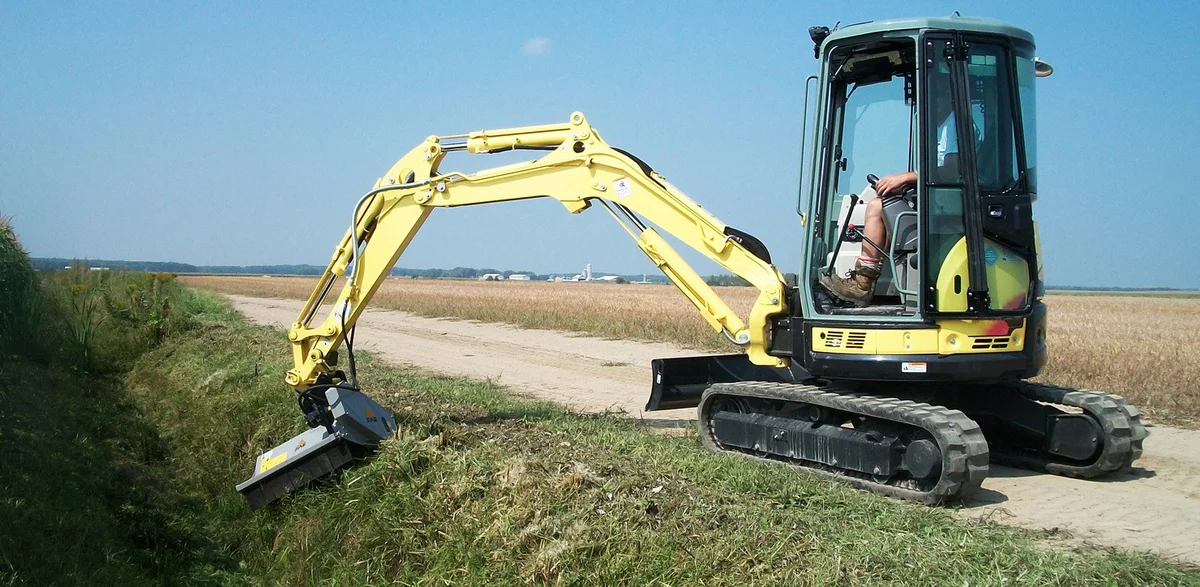

A bank-mowing task uses excavator reach
The excavator positions the 700 mm swath along a ditch bank or verge while the rotor handles grass, brambles and light woody growth. The mount and hose route follow the working angle; the selected roller/skid arrangement sets the head against the cut area.
Purchase Options & Service Parts
Purchase options
- PML hammers or Y/2 flails
- 8 cc or 16 cc motor
- Machine bracket and pins
- Self-levelling plate option
- Valve and hydraulic-line package
Service & replacement parts
- Hammers/flails and fasteners
- Belts
- Rear roller and bearings
- Motor, valve and hose components
FAE PML/HY 70 Buying Questions
How many cutting tools does the 700 mm model use?
Ten PML hammer or Y/2 flail positions.
Is this the same as a 72 inch rotary mower?
It uses a 700 mm rotor with distributed hammer/flail tools. A rotary deck uses long blades underneath a different cutting structure.
Which carrier is PML/HY70 intended for?
The 700 mm model is for 2–3.5 tonne mini excavators.
What is the vegetation-diameter entry?
The model lists 40 mm, separate from the 700 mm working width.
