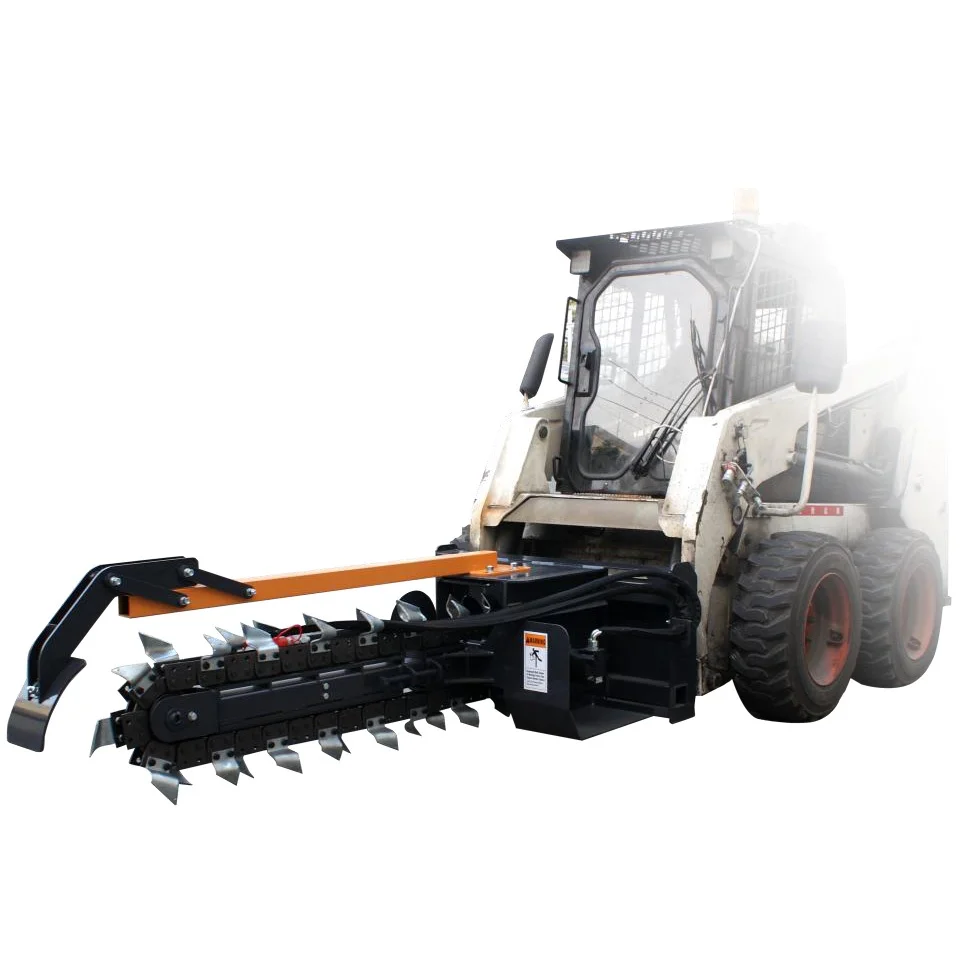

Wolverine 200 mm Chain Trencher — 1,200 mm Depth
The 84-inch table configuration has a 200 mm trench width, 1200 mm maximum depth, 400 mm spoil auger and 404 kg attachment weight.
200 mm
PRODUCT CATEGORY
Skid Steer Trenchers
A chain trencher cuts a narrow continuous trench and moves excavated material to the side. Select chain width, tooth pattern, boom depth and spoil auger with the skid-steer circuit. A 1200 mm depth specification is different from the length or nominal name of the attachment.
1 products
Models and component numbers
No matching products.
Send the part number or describe the equipment you need.
Send a sourcing requestWolverine 200 mm Trencher Specifications
| Field | Specification |
|---|---|
| Maximum trench depth | 1200 mm |
| Trench width | 200 mm |
| Spoil-auger diameter | 400 mm |
| Attachment mass | 404 kg /891 lb |
| Flow | 60–90 L/min |
| Working pressure | 21 MPa /3000 psi |
| Overall width × height × length | 1240 × 710 × 2290 mm |
Chain teeth decide how the soil is cut
A cup-tooth pattern digs and carries loose soil. Carbide-equipped tooth patterns address more abrasive or harder ground. A combination pattern mixes cutting and carrying functions. Put the exact tooth pattern, chain pitch, chain width and sprocket connection into the order, then add replacement teeth and their fasteners.
Depth, spoil clearance and trench bottom
Boom position controls the cutting depth; the side auger places spoil beside the trench. A utility trench order states the target width/depth and the material to cut. The backfill route and receiving lane determine which side should receive the spoil. The finished trench profile is a work specification, rather than just a model-name search.
Order the chain and service parts as a set
- Trencher body, boom and skid-steer mounting
- 200 mm chain width and selected tooth pattern
- Drive motor, hydraulic hoses and connector ends
- Spoil auger and depth/crumb-cleaner arrangement
- Replacement chain, teeth, fasteners, sprockets and bearings
Buying questions
Does 84 inches mean 1200 mm digging depth?
The manufacturer’s table labels the configuration 84 inches and separately gives 1200 mm maximum trench depth. Use the depth field for the trench requirement.
What should a replacement-chain order include?
Width, pitch, length, tooth pattern and sprocket connection define the assembly. Teeth and fastening hardware are counted separately.
When choose an auger instead?
An auger creates individual holes; the chain trencher creates a continuous narrow excavation. The required shape of the excavation selects the tool family.
