Excavator Demolition Shears

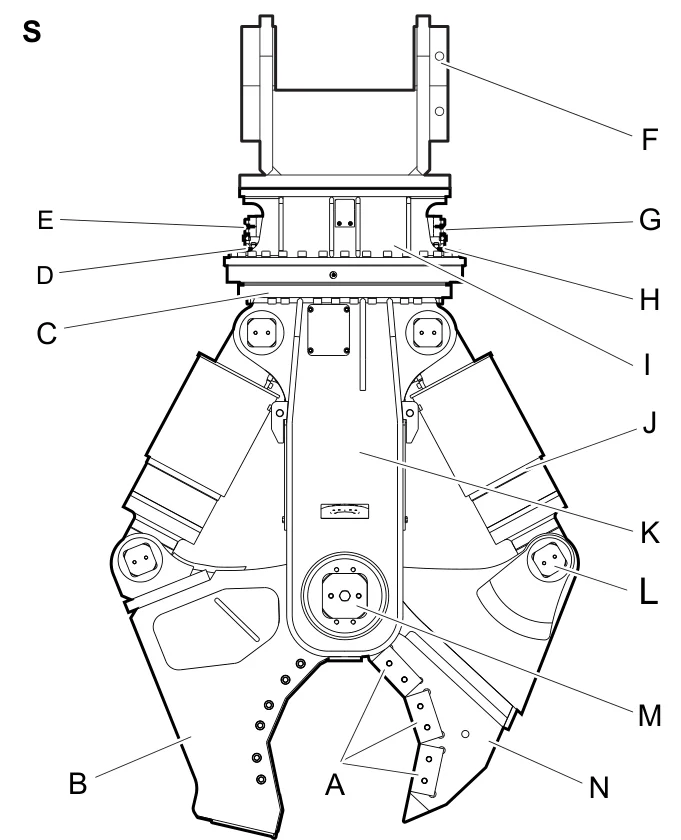

Epiroc CC 2300 S Steel-Jaw Combination Cutter
The CC 2300 S steel configuration has a 415 mm opening, 485 mm jaw depth and 380 mm blades.
2160 kg
PRODUCT CATEGORY
Excavator Demolition Shears
A steel-cutting shear closes blade-equipped jaws around the section being removed. Jaw opening, blade reach and force measurement point determine the comparison. A combination cutter with steel jaws is a different assembly from a bulk concrete pulverizer.
1 products
Models and component numbers
No matching products.
Send the part number or describe the equipment you need.
Send a sourcing requestSteel cutting and concrete reduction use different jaws
| Tool | Working face | Task |
|---|---|---|
| Steel-jaw cutter | Blades close around the section | Cut steel profiles and reinforcement |
| Universal combination cutter | Concrete-breaking jaws with blade segment | Mixed demolition tasks |
| Bulk pulverizer | Broad toothed reduction face | Secondary concrete reduction and rebar separation |
Compare the CC2300 jaw versions
| Version | Service weight | Opening | Jaw depth | Blade length |
|---|---|---|---|---|
| U universal | 2290 kg | 750 mm | 660 mm | 350 mm |
| S steel | 2160 kg | 415 mm | 485 mm | 380 mm |
| P pulverizer | 2670 kg | 747 mm | 605 mm | 140 mm |
Force needs its measurement point
CC 2300 S has separate force ratings of 294 tonnes at the upper blades and 87 tonnes at the jaw tip. These are different locations on the jaw, not competing ratings for one point. Put the steel profile, wall thickness and cutting location into the purchase request so the selected blade reach corresponds to the task.
Opening/closing and rotation need two circuits
The common CC2300 installation uses 150–250 L/min at 350 bar for the jaw and 35–50 L/min with 170 bar maximum for rotation. List the steel-jaw set, rotator, adapter, connections and blade-service set separately. Blade position and fastening pattern identify the replacement; the generic word shear does not.
Buying questions
Is 294 tonnes a jaw-tip rating?
The S-jaw force ratings are 294 tonnes at the upper blades and 87 tonnes at the jaw tip.
Can U, S and P specifications be merged?
They are separate jaw configurations with different openings, weights and blade dimensions.
What is a useful steel-cutting inquiry?
Give the profile type, section dimensions, wall thickness, cutting position, carrier and hydraulic circuits.
