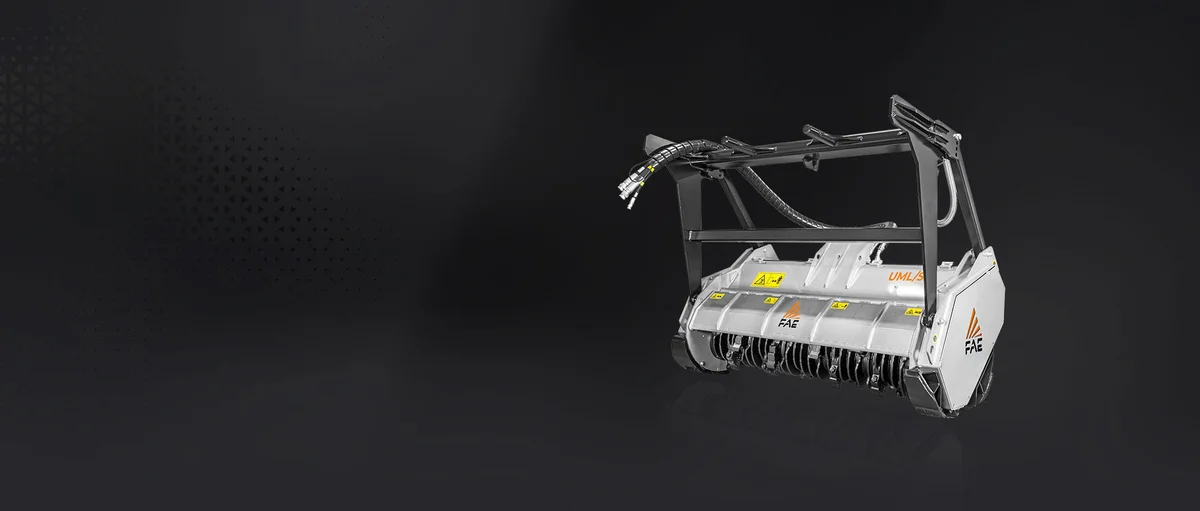

FAE UML/SSL/VT-150 Skid-Steer Forestry Mulcher
A high-flow skid-steer mulcher with 1582 mm working width, 1300 kg weight and a 425 mm rotor.
1582 mm
PRODUCT CATEGORY
Skid Steer Forestry Mulchers
Compare FAE UML/SSL/VT skid-steer drum heads by working width, high-flow circuit, rotor tools and case-drain installation. VT-150 has 1,582 mm working width, a 1,300 kg body and a 115–200 L/min model flow range.
1 products
Models and component numbers
No matching products.
Send the part number or describe the equipment you need.
Send a sourcing requestA drum mulcher, rotary cutter and excavator head use different mounts
| Product structure | Carrier / work | Procurement choice |
|---|---|---|
| UML/SSL/VT drum | Skid steer / compact track loader; ground-level woody material | High-flow motor, fixed teeth, case drain and skid mount |
| Rotary brush cutter | Skid steer; grass and brush swaths | Broad deck and long blades; distinct motor window |
| PML/HY hammer/flail head | Mini excavator; bank and reach-based mowing | Excavator bracket and rotor width; separate product family |
UML/SSL/VT-150 and VT-175 Specifications
| Model | Flow | Pressure | Work width | Weight | Rotor | Tool population |
|---|---|---|---|---|---|---|
| UML/SSL/VT-150 | 115–200 L/min | 200–350 bar | 1582 mm | 1300 kg | 425 mm | 32 C/3 +2 side scrapers |
| UML/SSL/VT-175 | 115–200 L/min | 200–350 bar | 1822 mm | 1400 kg | 425 mm | 36 C/3 +2 side scrapers |
A case drain is a separate hydraulic connection
The UML/SSL/VT head uses a case-drain line alongside feed and return. Write the motor, drain connector, carrier flow and oil-cooling arrangement into the installation package. Hood control and optional diverter functions add their own electrical or hydraulic lines. A high-flow label alone does not describe these connections.
Choose the teeth and service parts by rotor
The Type C rotor uses C/3 teeth and C/3/SS side scrapers. Other rotor/tool arrangements use different cutting populations. A replacement order records the rotor identity, tooth type, bolt quantity and side-scraper pair; belts, motor and bearings belong to the drive-service group. The purchase can include hood controls and an oil-cooler option for sustained clearing.
Buying questions
Can a 14–20 gpm brush-cutter circuit run this mulcher?
The UML/SSL/VT range here requires 115–200 L/min and 200–350 bar. It is a different hydraulic installation from the smaller rotary cutter.
What makes a mulcher repair order repeatable?
Record the rotor/tool identity, teeth and side scrapers, fasteners, belts and the motor assembly. A generic bag of cutter teeth does not describe the rotor population.
Does the 200 mm shredding diameter describe cut width?
No. Vegetation diameter and working width are separate model fields; VT-150 has a 1582 mm working width.
Which carrier is the UML/SSL/VT range for?
These VT configurations are skid-steer and compact-track-loader drum heads. An excavator head uses its own mounting and hydraulic package; the PML/HY range is listed separately under flail mowers.
