Hydraulic Compactors

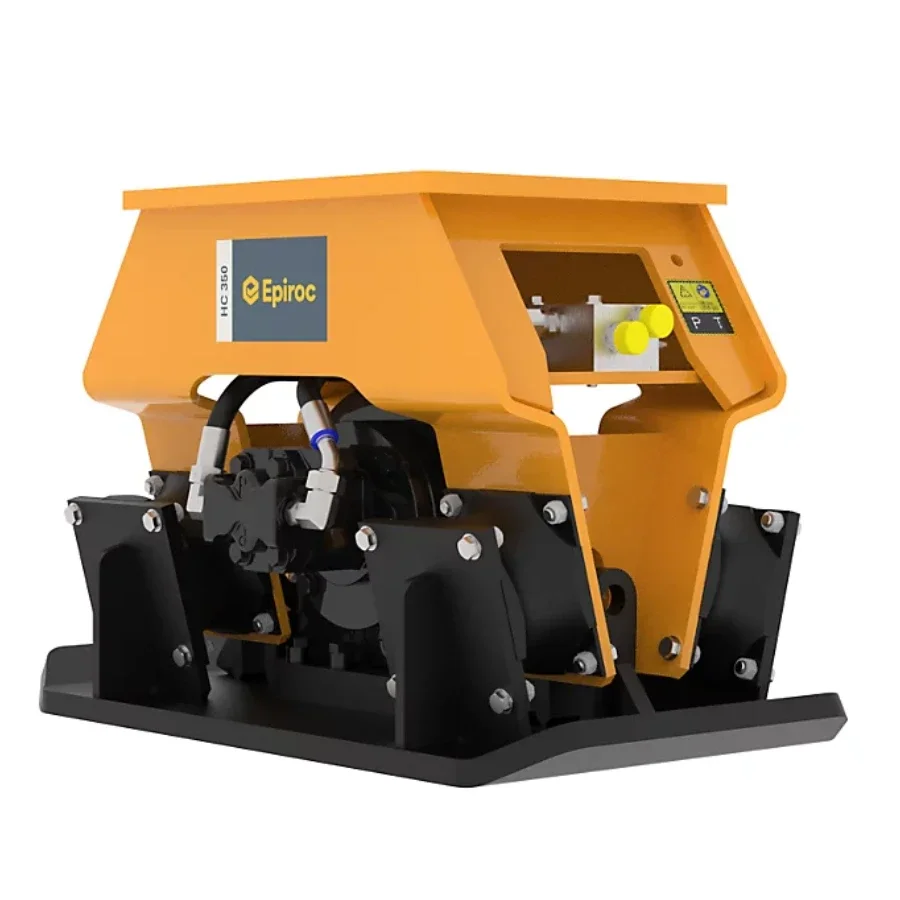

Epiroc HC 350 Excavator Plate Compactor
HC350 is a non-rotating compactor for 3–8 tonne carriers, with a 475 × 846 mm plate, 330 kg service weight, 23 kN centrifugal force and 57 L/min oil-flow requirement.
3–8 t
PRODUCT CATEGORY
Hydraulic Compactors
Compare JT-mini and Epiroc HC 350 excavator plate compactors by carrier, plate size, mass and hydraulic circuit. Add the mounting bracket, vibration drive, hose connections and wear/isolator package to the selected model.
2 products
Hydraulic Compactors

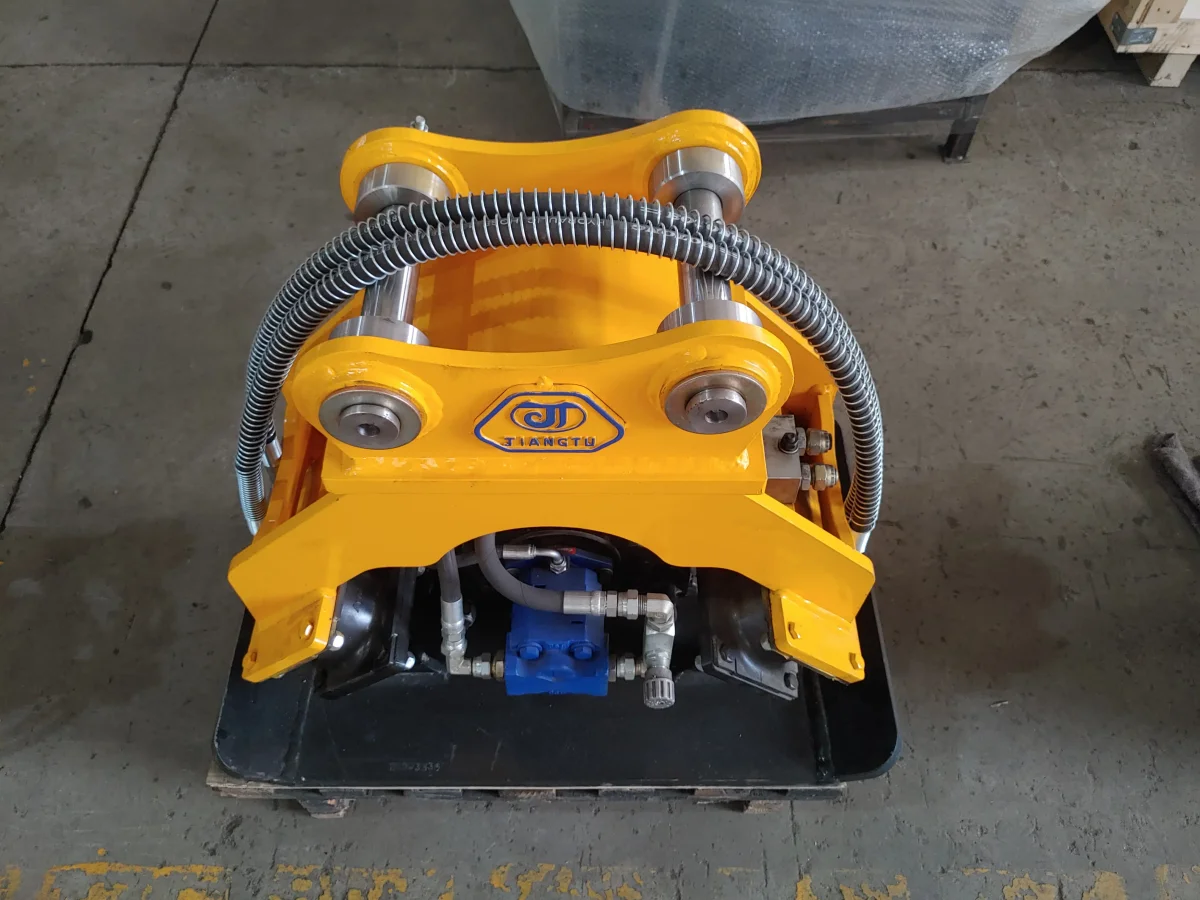

JIANGTU JT-mini Hydraulic Plate Compactor — 2–4 Tonne Class
JT-mini is a 200 kg excavator plate compactor for 2–4 tonne carriers, with an 800 × 442 mm bottom plate.
2–4 t · 200 kg
Models and component numbers
No matching products.
Send the part number or describe the equipment you need.
Send a sourcing requestTwo compact-carrier vibrating-plate packages
| Product | Carrier | Mass | Plate | Flow / pressure |
|---|---|---|---|---|
| JIANGTU JT-mini | 2–4 t | 200 kg | 800 × 442 mm | 30–60 L/min; 100–130 kg/cm² |
| Epiroc HC 350 | 3–8 t | 330 kg service / 296 kg body | 475 × 846 mm | 57 L/min; 160 bar |
Compare non-rotating and rotating HC350
| Version | Carrier | Service weight | Body weight | Plate | Compaction flow | Rotation flow |
|---|---|---|---|---|---|---|
| HC350 | 3–8 t | 330 kg | 296 kg | 475 × 846 mm | 57 L/min | None |
| HC350R | 4–8 t | 450 kg | 416 kg | 475 × 846 mm | 57 L/min | 15–25 L/min |
Plate force is different from attachment weight
HC350 lists 23 kN centrifugal force and 35 Hz vibration frequency. The 330 kg service weight describes the mounted attachment configuration. The plate transmits repeated vibration to the placed material; force, frequency and plate footprint should be compared separately from carrier weight.
A trench-backfill sequence sets the work requirement
Place and spread the specified lift of material, then compact along the trench before adding the next lift. The trench width and reach determine plate access. Required density, test method and material/moisture specification belong to the project work plan; the attachment purchase selects the plate and hydraulic installation for that sequence.
Keep vibration and rotation circuits separate
The HC350 vibration circuit uses 57 L/min at 160 bar. The R version adds 15–25 L/min rotation with a 320 bar maximum rotation-pressure entry. Mounting plate, pins, feed/return/drain connections and hose routes belong on the installation list. Base plate, isolators, bearings and hydraulic service components are separate repeat-order items.
Buying questions
Does 23 kN mean the compactor weighs 23 tonnes?
It is centrifugal force. The HC 350 service weight is 330 kg and the body weight 296 kg.
What does the R version add?
HC350R adds rotation, mass and a separate rotation circuit. Its service weight is 450 kg, with 15–25 L/min for rotation.
Does buying a compactor prove a specified soil density?
The project’s material, lift and density test define the compaction result. The purchase configuration selects the plate, frequency, force and carrier installation for that work.
