Concrete Mixing Buckets

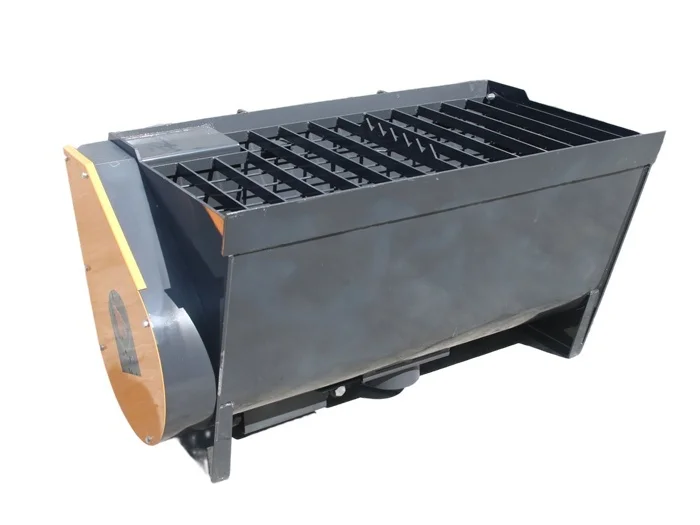

Wolverine CM-11-250V — 0.27 m³ Concrete Mixing Bucket
A 670 lb mixer attachment with a 0.27 m³ hopper, 400 mm auger and 45 rpm mixing specification.
0.27 m³
PRODUCT CATEGORY
Concrete Mixing Buckets
A hydraulic mixing bucket scoops the batch material, mixes through a driven auger and places concrete at the work point. Separate hopper volume, usable batch requirement, attachment mass and the discharge arrangement when selecting the carrier.
1 products
Models and component numbers
No matching products.
Send the part number or describe the equipment you need.
Send a sourcing requestA mixer bucket is different from a carrying bucket
| Type | Task | Power and discharge |
|---|---|---|
| Mixing bucket | Mix the batch on the carrier | Driven mixing auger and outlet |
| Concrete carrying bucket | Move an already prepared mix | Gravity placement through its opening |
| Drum mixer attachment | Mix in a drum configuration | Separate drum and discharge geometry |
A 0.27 m³ hydraulic model with a 400 mm auger
| Field | Specification |
|---|---|
| Hopper volume | 0.27 m³ |
| Empty weight | 670 lb |
| Mixing auger | 400 mm diameter;45 rpm |
| Maximum flow | 20 US gpm |
| Continuous working pressure | 17 MPa |
| Electrical supply | 12 V DC |
| Guide-tube inside/outside diameter | 160 /176 mm |
Batch mass is a separate carrier load
At a specified mix density of 2.4 t/m³, a 0.27 m³ volume represents 648 kg of material. Add the empty attachment and mounting to that volume calculation. The desired batch and the carrier’s load geometry determine the working quantity; hopper volume alone is not a loader payload rating.
Choose where the concrete leaves the bucket
An outlet and guide tube place material into the receiving form or trench. State the outlet position, tube length and control arrangement with the mixing bucket. The 12 V supply is a separate installation item from the hydraulic motor circuit. For a small footing job, the work flow is batch loading, mixing, positioning the outlet and placing the batch before the next load.
The auger and drive are repeat-order assemblies
- Mixer body, auger and carrier mounting
- Drive motor, reduction and hydraulic hoses
- Discharge gate/guide tube and its controls
- 12 V wiring and machine connector
- Auger wear parts, sprockets, chain, seals and gate-service components
Buying questions
Is hopper volume the machine’s load rating?
No. Multiply volume by mix density to calculate material mass, then add the attachment and mounting. Carrier load capacity is a separate machine field.
Why include a 12 V connector on the order?
The model lists 12 V DC in addition to the hydraulic circuit. The controls and connector arrangement need their electrical purchase line.
Which mixer parts wear?
Auger surfaces, drive chain/sprockets, seals and discharge-gate components are separate service groups.
