Concrete Mixing Buckets

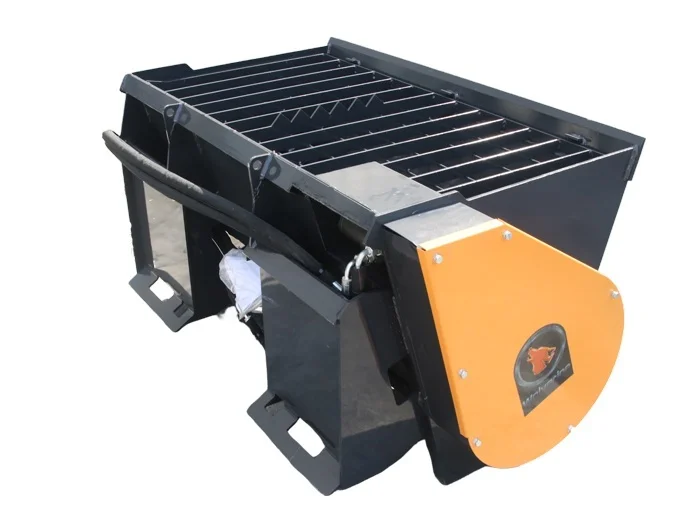

Wolverine CM-11-250V — 0.27 m³ Concrete Mixing Bucket
A 670 lb mixer attachment with a 0.27 m³ hopper, 400 mm auger and 45 rpm mixing specification. Maximum oil flow is 20 US gpm, continuous working pressure 17 MPa and electrical supply 12 V DC.
- Model / Part No.
- Wolverine CM-11-250V
- Machine / configuration
- Skid steer / compact loader mounting
- Auger diameter
- 400 mm
- Continuous pressure
- 17 MPa
Wolverine CM-11-250V Specifications
| Model / part number | Wolverine CM-11-250V |
|---|---|
| Hopper volume | 0.27 m³ |
| Weight | 670 lb |
| Auger diameter | 400 mm |
| Auger speed | 45 rpm |
| Maximum flow | 20 US gpm |
| Continuous pressure | 17 MPa |
| Electrical supply | 12 V DC |
| Reduction ratio | 3 |
| Guide-tube ID / OD | 160 / 176 mm |
Write batch and outlet together
The order pairs the 0.27 m³ hopper with the discharge arrangement used at the form. Tube position, length and 12 V controls belong to the placement equipment list.
Record the mixer drive
The model lists a 400 mm auger, 45 rpm and a 3:1 sprocket reduction. Replacement auger/drive parts should use the assembly dimensions and the selected chain/sprocket identity.
A batch calculation links hopper volume to the carrier
At a specified concrete density of 2.4 t/m³, 0.27 m³ contains 648 kg of material. The 670 lb empty bucket is about 304 kg, giving approximately 952 kg for bucket plus that batch. Put the chosen batch quantity and mounting arrangement beside the carrier load information.
| Assembly | Configuration |
|---|---|
| Mixer | 0.27 m³ hopper; 400 mm auger; 45 rpm |
| Hydraulic drive | 20 US gpm maximum; 17 MPa continuous pressure |
| Discharge control | 12 V DC supply and chosen gate/outlet arrangement |
| Guide tube | 160 mm ID / 176 mm OD; selected position/length |
| Repeat supply | Auger wear, chain/sprockets, gate, seals and bearings |
Mix beside the work and discharge into the form
The carrier loads the batch, runs the mixing auger, positions the discharge outlet and places material through the guide tube. The mixing drive and 12 V discharge control are separate installation lines, while gate/tube wear belongs on the service list.
Purchase Options & Service Parts
Purchase options
- Mixer and skid-steer mounting
- Auger, motor and reduction assembly
- Selected discharge/tube arrangement
- Hydraulic and 12 V control package
- Auger/chain/gate service parts
Service & replacement parts
- Auger wear components
- Drive chain and sprockets
- Seals and bearings
- Discharge gate and guide tube
Wolverine CM-11-250V Buying Questions
What is the listed maximum flow?
20 US gpm.
Is this a standalone electric mixer?
It is a carrier-mounted hydraulic mixing bucket with a 12 V DC control supply, not a mains-powered freestanding mixer.
What does the 12 V connection power?
It is the listed control supply accompanying the hydraulic mixing/placement package; the mixing motor uses the hydraulic circuit.
Which pressure is the model’s continuous entry?
17 MPa, equivalent to 170 bar.
