Skid Steer Grapple Buckets

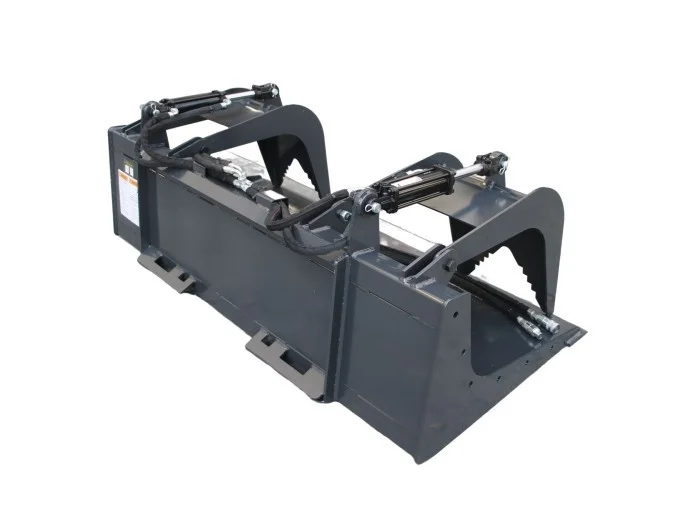

Wolverine 72-inch Grapple Bucket — 44-inch Opening
A 511 lb closed grapple bucket with 72 inch overall width, 44 inch maximum opening and a 2 inch bore/6 inch stroke jaw cylinder configuration.
- Model / Part No.
- Wolverine 72-inch grapple bucket
- Machine / configuration
- Skid steer / compact track loader
- Overall width
- 72 in
- Maximum opening
- 44 in
Wolverine 72-inch grapple bucket Specifications
| Model / part number | Wolverine 72-inch grapple bucket |
|---|---|
| Overall width | 72 in |
| Weight | 511 lb |
| Maximum opening | 44 in |
| Cylinder bore | 2 in |
| Cylinder stroke | 6 in |
| Overall length | 36 in |
| Overall height | 26 in |
| Listed material thickness | 3/8 in |
Closed body and opening jaw
The bucket carries finer debris while the jaw holds irregular pieces. The 72 inch width and 44 inch opening describe two axes of the assembly.
Keep the cylinder geometry
The 2 inch bore/6 inch stroke fields belong to this grapple bucket configuration. Other fork or root grapples have separate cylinders and pivots.
Choose a closed floor for debris that travels with the load
| Group | 72-inch configuration |
|---|---|
| Working face | Closed bucket and opening jaw |
| Envelope | 72 in width; 36 in length; 26 in height |
| Opening / mass | 44 in maximum; 511 lb |
| Jaw cylinder | 2 in bore / 6 in stroke |
| Repeat supply | Cylinder seals, pivots/bushes, hose ends and wear surfaces |
Keep the jaw assembly with the receiving task
The closed body carries fines while the jaw retains irregular branches and debris. An open root/skeleton grapple lets finer material pass; a fork grapple handles a different load geometry. Select the handling face around what is carried into the receiving pile, then keep the cylinder and pivot identities with the order.
Purchase Options & Service Parts
Purchase options
- 72 inch bucket/jaw assembly
- Skid-steer mount
- Opening/closing hose connections
- Selected wear and service package
Service & replacement parts
- Cylinder seals
- Jaw pivot pins and bushes
- Wear surfaces
- Hoses and couplers
Wolverine 72-inch grapple bucket Buying Questions
What is the maximum jaw opening?
44 inches.
What is the listed empty weight?
511 lb.
When does the closed body help?
It carries finer debris with the gripped objects instead of allowing it to pass between open tines.
Which cylinder dimensions identify this bucket?
2-inch bore and 6-inch stroke are the model’s jaw-cylinder entries.
