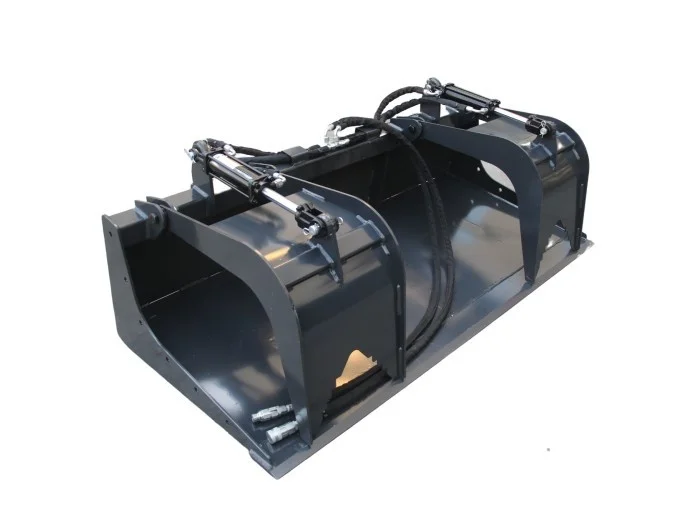

Wolverine 72-inch Grapple Bucket — 44-inch Opening
A 511 lb closed grapple bucket with 72 inch overall width, 44 inch maximum opening and a 2 inch bore/6 inch stroke jaw cylinder configuration.
72 in
PRODUCT CATEGORY
Skid Steer Grapple Buckets
A loader grapple adds jaws to hold irregular material. Select a closed grapple bucket, open root grapple or fork grapple around what must be carried and what should fall through. Opening, width and hydraulic cylinder dimensions describe the gripping assembly.
1 products
Models and component numbers
No matching products.
Send the part number or describe the equipment you need.
Send a sourcing requestClosed bucket and open handling faces
| Type | Material route | Selection |
|---|---|---|
| Grapple bucket | Carries finer debris with the load | Closed body capacity and jaw opening |
| Root/brush grapple | Lets fines fall through | Tine spacing, reinforcement and width |
| Fork grapple | Supports long or pallet i zed loads on tines | Fork length, load rating and jaw geometry |
Two Wolverine handling configurations
| Configuration | Width | Mass | Geometry |
|---|---|---|---|
| 72 inch grapple bucket | 72 in | 511 lb | 44 in maximum opening ; 2 in bore/6 in stroke |
| 48 inch tine fork grapple | 45.3 in overall | 600 lb | 48 in tines ; 2 in × 8 in cylinder;4000 lb rating |
Jaw opening is not lifted capacity
The 44 inch opening describes entry space. A fork assembly rating of 4000 lb is a separate attachment field; carrier load chart, load centre and assembly mass define the working combination. For brush cleanup, define whether fines stay in the load or pass between tines.
Order jaw cylinders and pivots by location
Write the jaw count, cylinder bore/stroke, pivots and mounting plate in the drawing. Then add hose/flat-face connections, cylinder seals, pins/bushes and wear surfaces. The work sequence is grip, carry and place; receiving pile space and visibility help choose the closed or open face.
Buying questions
Is 44 inch opening a capacity rating?
It is a geometric opening, not a lifted mass.
When should I use a closed grapple bucket?
When finer debris needs to be carried with the gripped material rather than pass between tines.
What identifies a cylinder seal set?
Cylinder identity, bore, rod and position identify the seal assembly.
