JIANGTU JT02 Standalone Hydraulic Thumb — 4–6 Tonne Class
JT02 is a standalone hydraulic thumb for 4–6 tonne excavators, with a 150 kg attachment weight. Length and width are selected for the existing bucket: 600–1,100 mm long and 200–400 mm wide. Its hydraulic circuit uses 30–55 L/min at 110–140 bar.
- Model / Part No.
- JIANGTU JT02 hydraulic thumb
- Machine / configuration
- 4–6 tonne excavators
- Width B
- 200–400 mm
- Pressure
- 110–140 bar
JIANGTU JT02 hydraulic thumb Specifications
| Model / part number | JIANGTU JT02 hydraulic thumb |
|---|---|
| Carrier | 4–6 t |
| Attachment weight | 150 kg |
| Length A | 600–1100 mm |
| Width B | 200–400 mm |
| Flow | 30–55 L/min |
| Pressure | 110–140 bar |
| Structure | Standalone hydraulic thumb |
A standalone thumb is designed around the existing bucket

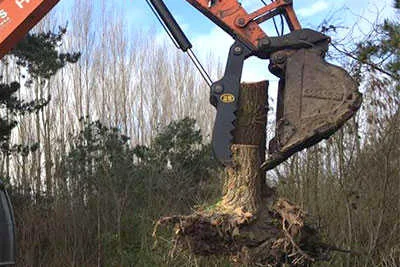

The JT02 thumb presses material against the bucket already on the machine. Its tine positions need to mesh with the bucket teeth through the working curl path. The selected coupler changes where that bucket sits, so the mounting drawing includes the coupler and the bucket profile.
Choose the length and width as order geometry
The manufacturer’s JT02 table gives 600–1,100 mm length and 200–400 mm width. These are configuration ranges rather than one universal mounting. Record the selected tine length, width, pivot and cylinder-anchor positions in the order drawing.
Compare it with the complete JT01 thumb bucket
| Configuration | Carrier | Weight | What is supplied |
|---|---|---|---|
| JT02 standalone thumb | 4–6 t | 150 kg | Thumb matched to the existing bucket |
| JT01 complete thumb bucket | 3–4 t | 156 kg | 350/400 mm bucket and gripping section together |
Draw the tines between the teeth of the existing bucket
| Field | Procurement purpose |
|---|---|
| Length A / width B | Chosen within 600–1,100 / 200–400 mm ranges |
| Bucket tooth positions | Tine alignment through the curl movement |
| Pivot and cylinder anchors | Working arc and cylinder installation |
| Installed quick hitch | Bucket position relative to the thumb |
| Hose route | 30–55 L/min grip circuit and moving connector arrangement |
Purchase Options & Service Parts
Purchase options
- Selected JT02 tine length and width
- Machine/bucket-specific mounting and cylinder anchors
- Hydraulic cylinder, valve and hose connections
- Pivot and wear protection
- Cylinder-seal and pin/bush service order
Service & replacement parts
- Cylinder seals
- Thumb pivot pins and bushes
- Tine wear protection
- Hoses and fittings
JIANGTU JT02 hydraulic thumb Buying Questions
Is JT02 a complete digging bucket?
This configuration is the standalone hydraulic thumb. The separate JT01 offering combines the bucket and gripping section.
Does the length range define the pivot-to-pivot mounting?
Length A describes the supplier’s thumb configuration. The machine pivot and cylinder anchors are specified on the bucket/stick mounting drawing.
What hydraulics are listed?
30–55 L/min at 110–140 bar for this JT02 thumb configuration.
Does the standalone JT02 have a rotating upper joint?
It is a cylinder-operated thumb that closes against the bucket. A rotating grapple has its own jaw and rotator assembly; it is a separate product structure.
