Skid Steer Tires & Wheels
Forerunner SKS-1 10–16.5 10PR Skid Steer Tyre
10–16.5 10PR SKS-1 tyre, with 779 mm diameter, 261 mm section width and 8.25 in recommended rim.
Forerunner SKS-1 10–16.5 10PR
Skid Steer Over-Tire Tracks
McLaren Maximizer 30X822X56 Over-Tire Tracks —Bobcat S650 Set
McLaren Maximizer 30X822X56 is the named Bobcat S650 steel-pad over-tire track set. It contains two tracks with a 12-inch pad-size entry. The tracks wrap around the fitted tyres; they are a different assembly from the continuous rubber belts on a T650 track loader.
- Model / Part No.
- McLaren Maximizer 30X822X56
- Component / application
- Bobcat S650 wheeled skid steer
- Manufacturer
- McLaren Industries
- Product
- Maximizer steel over-tire tracks
- Pad-size entry
- 12 in
McLaren Maximizer 30X822X56 Specifications
| Model / part number | McLaren Maximizer 30X822X56 |
|---|---|
| Manufacturer | McLaren Industries |
| Model / SKU | 30X822X56 |
| Product | Maximizer steel over-tire tracks |
| Named machine | Bobcat S650 |
| Pad-size entry | 12 in |
| Order unit | Set of two tracks |
A two-track set wraps around the existing tyres
One 30X822X56 product unit contains the left and right over-tire tracks. The tyres and wheels remain underneath the selected steel-pad system. Tyres, spacers and mounting hardware are counted separately in the installation purchase.
Measure the fitted wheel position before choosing spacers
Record wheelbase, the tyre’s width/outside diameter and the space between tyre and frame. A spacer moves the wheel outward and brings its own hub pattern and fixing hardware. Its thickness belongs with the actual installed track package.
Order repair hardware by its track manufacturer
The McLaren Maximizer set has its own pad/link arrangement. Loegering F-Series FN103 pads and FN425/FN424 links are separately named service systems. Keep the installed brand/model with the replacement pad, pin and link quantities.
Purchase Options & Service Parts
Purchase options
- One two-track conversion set
- Selected tyre/wheel configuration
- Wheel-spacer and fixing hardware by installation
- Repair hardware by the installed McLaren track model
Service & replacement parts
- McLaren pads/links/pins by track model
- Selected wheel spacers and hardware
- Tyres and valves by fitted size
McLaren Maximizer 30X822X56 Buying Questions
Is the sales unit one track?
It is a set of two tracks for the named S650 installation.
Does an over-tire track replace a T650 rubber belt?
It wraps around tyres on a wheeled skid steer. A T650 uses continuous belts on its dedicated track undercarriage.
Does the set include replacement tyres?
The tyres and wheels are separate purchase lines; the set supplies the selected two steel over-tire tracks.
Can pads from another track manufacturer be used as the same part?
Each pad/link/pin repair stays with its own installed track system and model number.
Related Products
Skid Steer Tires & Wheels
Forerunner SKS-1 12–16.5 12PR Skid Steer Tyre
12–16.5 12PR SKS-1 tyre, with 830 mm diameter, 312 mm section width and 9.75 in recommended rim.
Forerunner SKS-1 12–16.5 12PR
Excavator Undercarriage Parts: Track & Carrier Rollers

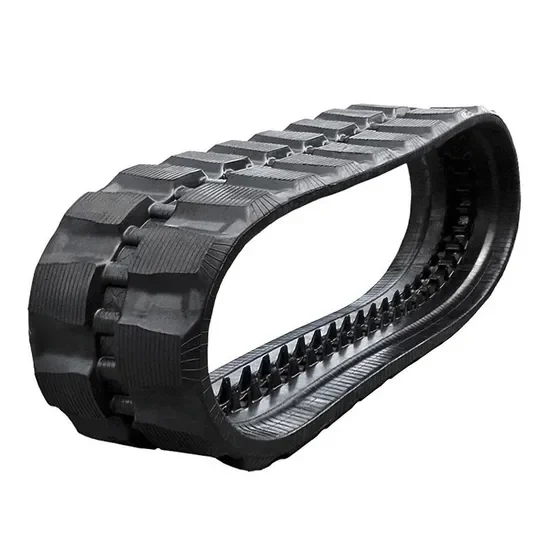

Huanball 320×86×52 C-Lug Rubber Track for Bobcat T650
