Skid Steer Stump Grinders

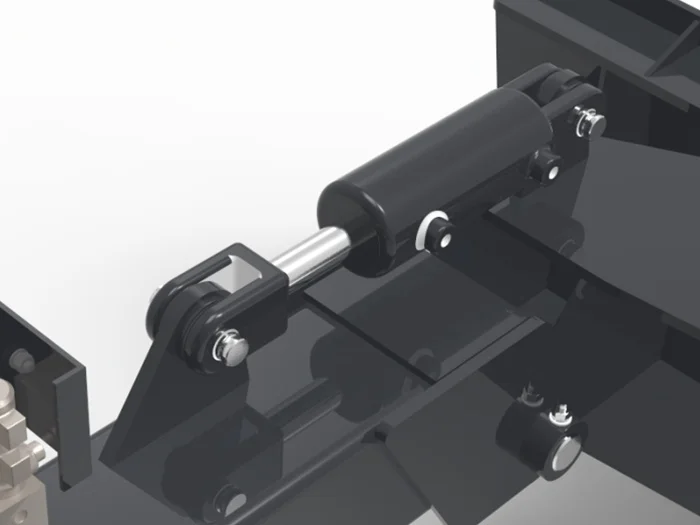

Wolverine SG-13-08D Stump Grinder — 25-inch Wheel
A 608 lb grinder with a 25 inch wheel, 32 carbide teeth, 55 inch swing arc and 8 inch below-ground depth. It uses 15–30 US gpm.
- Model / Part No.
- Wolverine SG-13-08D
- Machine / configuration
- Skid steer / compact track loader
- Wheel diameter
- 25 in
Wolverine SG-13-08D Specifications
| Model / part number | Wolverine SG-13-08D |
|---|---|
| Manufacturer SKU | SG-13-08D |
| Wheel diameter | 25 in |
| Teeth | 32 carbide |
| Below-ground depth | 8 in |
| Swing arc | 55 in |
| Maximum lift | 25 in |
| Weight | 608 lb |
| Flow | 15–30 US gpm |
Keep the cutting envelope on the order
The 25 inch wheel, 55 inch sweep and 8 inch depth are separate dimensions. The site drawing uses all three with the skid-steer approach.
Count the carbide service set
The cutter has 32 carbide positions. Add pockets and bolts to the tooth quantity so the service package describes a fitted cutting assembly.
Wheel, swing and depth describe three working axes
| Dimension | Model field | Work use |
|---|---|---|
| Wheel | 25 in diameter | Cutting assembly and tooth positions |
| Swing | 55 in arc | Space for repeated cutting passes |
| Below-ground reach | 8 in | Finished depth below the ground |
| Lift | 25 in maximum | Working position above the ground |
Teeth and pockets are a repeated purchase
The 32 carbide positions identify a complete wheel cutting set. Keep tooth/pocket profiles and fastening details with the wheel record, then order individual replenishment or a whole set by quantity. After grinding, the site work collects/spreads chips and backfills the remaining depression.
Purchase Options & Service Parts
Purchase options
- Grinding assembly and skid-steer mount
- Motor/hydraulic connection package
- Wheel-position controls
- Replacement tooth/pocket set
Service & replacement parts
- Carbide teeth
- Pockets and fasteners
- Wheel bearings
- Motor, hoses and positioning seals
Wolverine SG-13-08D Buying Questions
What oil flow is listed?
15–30 US gpm.
What is the empty attachment mass?
608 lb.
Does a 25-inch wheel mean a 25-inch grinding depth?
The separate below-ground depth entry is 8 inches. Wheel diameter is 25 inches.
Which parts follow a worn carbide tooth?
Its pocket and fastener arrangement belong with the tooth profile and wheel position.
